In the field of aluminum profile manufacturing, the extrusion process plays a pivotal role in determining the quality, precision, and consistency of the final product.

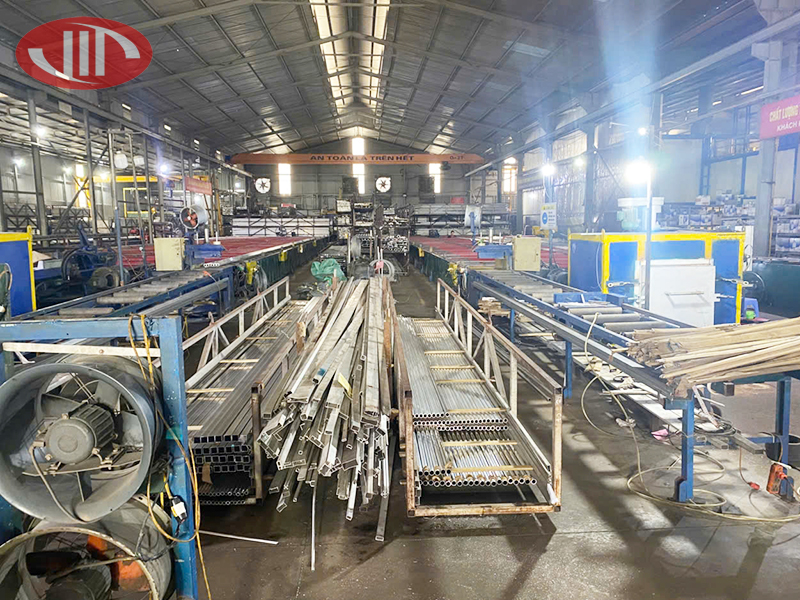

At Viet Y Aluminium Co., Ltd., we are proud to operate a fully integrated extrusion line equipped with cutting-edge technology and a rigorous quality control system. This enables us to produce high-standard aluminum profiles that meet the demanding requirements of both domestic and international markets.

Overview of the Aluminum Extrusion Process

Aluminum extrusion is a manufacturing technique where preheated aluminum billets are forced through a custom-designed die using immense hydraulic pressure. As the aluminum exits the die, it takes on the desired profile shape—such as box sections, U-channels, T-sections, I-beams, grooved bars, round or elliptical rods—depending on the end-use application.

At Viet Y Aluminium, this process goes beyond basic forming. It is seamlessly integrated with surface treatment, quality inspection, and custom finishing tailored to client specifications.

Detailed Steps in Viet Y Aluminium's Extrusion Process

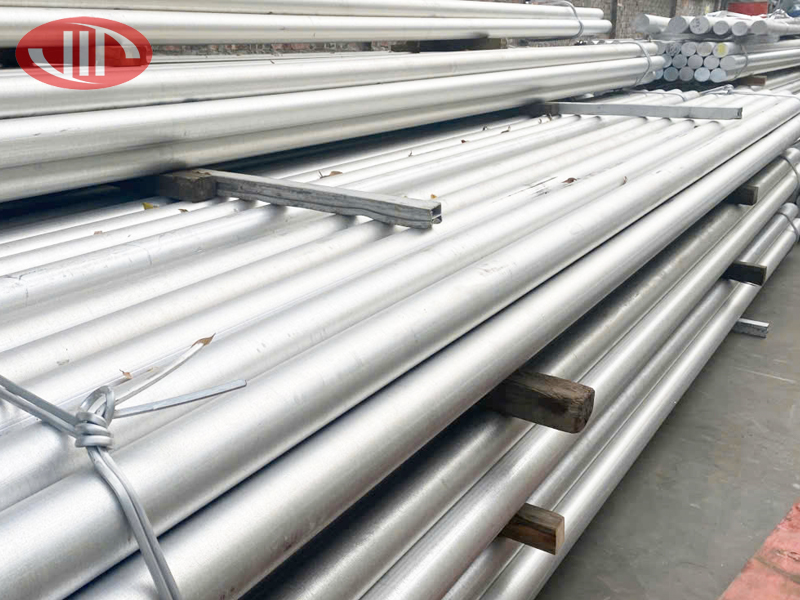

Step 1: Selection and Preparation of Aluminum Billets

We use premium-grade aluminum alloys such as 6063, 6061, and 6005, either imported from reputable suppliers or produced in-house according to international standards. Each billet undergoes chemical composition and mechanical property testing to ensure suitability for extrusion.

Step 2: Preheating the Billets

The billets are heated in specialized furnaces to temperatures between 450°C and 500°C, making them malleable for extrusion. This stage is closely monitored with automated temperature sensors to maintain material integrity.

Step 3: Extruding Through the Profile Die

The heated billet is placed into the extrusion press. A hydraulic ram with a force of 1,000–2,800 tons pushes the aluminum through a precision-engineered die, designed using CAD/CAM software. The result is a sharply defined, consistent aluminum profile.

Step 4: Cooling the Extruded Profile

Once it exits the die, the aluminum profile is rapidly cooled using high-capacity fans or water mist systems. Quick cooling helps stabilize the material structure and minimizes warping.

Step 5: Stretching and Straightening

The profile is then stretched using specialized machinery to eliminate residual stress, ensuring straightness, optimal mechanical strength, and dimensional stability.

Step 6: Cutting to Standard or Custom Lengths

Profiles are cut using automatic saws into standard lengths (typically 6m or 5.8m), or custom lengths as per client requests. Precision measurements are taken to ensure minimal deviation.

Step 7: Heat and Surface Treatments

Depending on application requirements, profiles may undergo artificial aging (for hardness), anodizing, powder coating, or chrome plating. These treatments enhance durability, corrosion resistance, and aesthetic value.

Key Advantages of Viet Y Aluminium’s Extrusion Process

- High Precision: Our in-house die production is optimized using Moldflow simulation to ensure accurate and efficient material flow for consistent profile quality.

- Modern and Synchronized Equipment: Our extrusion presses, CNC cutting machines, stretching units, and surface treatment systems are imported from Europe and Japan for top-tier performance.

- Superior Finishing: Products feature smooth, uniform surfaces and precise dimensions, meet ISO standards, and are ready for export.

- Flexible Production: We accommodate custom designs and can produce a wide variety of profiles in any shape or quantity, based on technical drawings or physical samples.
