In the aluminum extrusion industry, the extrusion die plays a critical role in determining the shape, precision, and quality of the final aluminum profile. Designing and manufacturing extrusion dies based on technical drawings not only ensures uniformity and aesthetic appeal but also helps businesses optimize costs and enhance production efficiency.

Viet Y Aluminium Co., Ltd., with over 10 years of experience in aluminum extrusion and precision engineering, proudly offers professional die design and manufacturing services according to customer specifications, serving various sectors such as construction, interior design, mechanical engineering, electronics, renewable energy, and supporting industries.

What is Aluminum Extrusion Die Design?

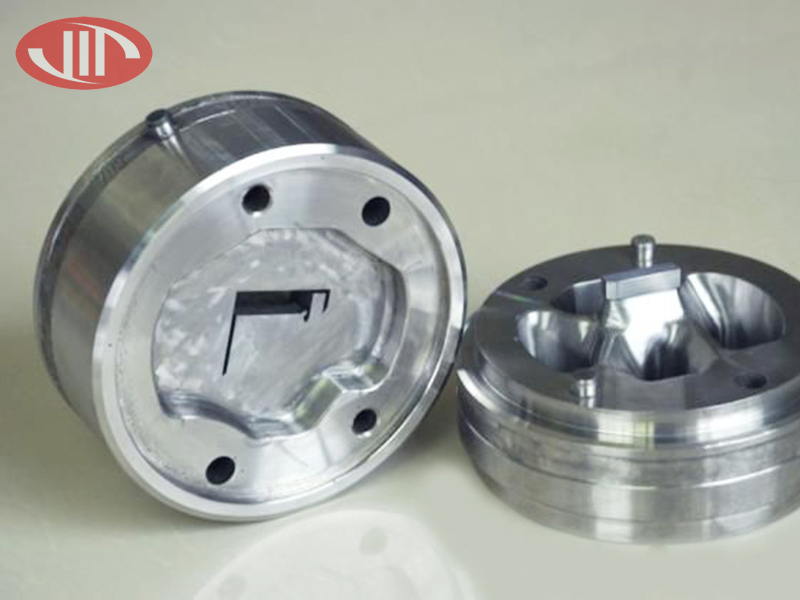

An aluminum extrusion die (commonly known as an extrusion mold) is a metal tool, typically made from heat-resistant tool steel, used in the extrusion process to shape aluminum profiles according to a specified cross-sectional design. Each unique drawing or profile requires a custom die to ensure the highest level of precision and suitability for its intended application.

Die Design and Manufacturing Process at Viet Y Aluminium

At Viet Y Aluminium, the design and production of extrusion dies are carried out professionally through the following steps:

- Receiving and analyzing technical drawings from the customer (2D, 3D, or physical samples).

- Technical consultation to optimize the design, ensuring manufacturability and die durability.

- 2D–3D die design using advanced CAD/CAM software (e.g., AutoCAD, SolidWorks).

- High-precision machining of the die on modern 3–4 axis CNC machines.

- Heat treatment and surface finishing of the die to enhance hardness, wear resistance, and durability under high-temperature conditions.

- Real-world testing of the die on the extrusion line to evaluate product quality.

- Final delivery and full technical warranty to the customer.

Why Choose Viet Y Aluminium for Die Design and Manufacturing?

- Accurate design based on drawings: Ensuring correct dimensions, shapes, and minimal tolerances (< ±0.1mm).

- Expert technical consultation: Helping optimize designs for cost-efficiency and tool longevity.

- High-tech CNC machining: Offering superior accuracy and extended die life.

- Fast turnaround time, keeping your project on schedule.

- Competitive pricing, suitable for both small batches and mass production.

- Strict quality control: Each die is thoroughly inspected before delivery.

Applications of Extrusion Dies in Production

Viet Y Aluminium provides custom extrusion die design and fabrication for various aluminum profile types, including:

- Aluminum frames for doors, windows, curtain walls, and facades.

- Technical aluminum profiles for machine-building and mechanical engineering.

- Specialized aluminum profiles for solar energy systems: panel frames, mounting rails, brackets.

- Interior accessories, electrical cabinet frames, aluminum enclosures, sliding rails, channels, and more.

Viet Y Aluminium – Your Trusted Partner in Aluminum Profile Projects

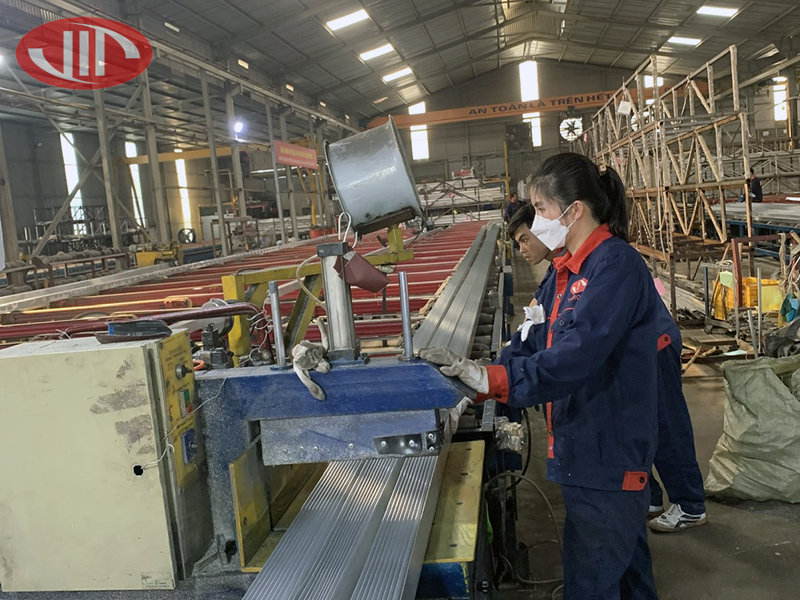

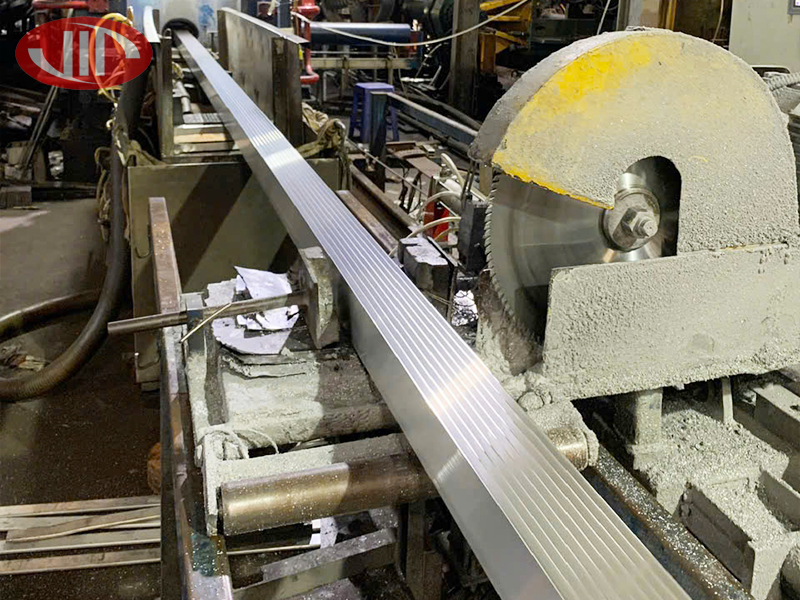

Beyond die design, Viet Y Aluminium owns a fully integrated aluminum production line, equipped with high-capacity extrusion machines, advanced CNC and laser processing, laser welding, as well as state-of-the-art surface finishing lines for powder coating, anodizing, wood-grain film coating, and more. This enables us to offer a complete one-stop solution, from die design, extrusion, machining, surface finishing, helping clients save time and maximize production efficiency.
